Miniwindows in MUSHclient - Colour channel blending modes

Written by Nick Gammon - July 2008. Updated September 2010.

On this page:

See also:

Colour channel blending modes

See Blending images for a description of how to use the image blending function. On this page are illustrated the "colour channel" modes.


Base image (in miniwindow) Blend image (mentioned in WindowBlendImage)

The modes on this page operate over all three channels (red, green and blue) rather than individual pixels. In each case a subset of the colours in the blend image is retained. The base layer is overwritten completely, unless you specify an opacity of less than 100%.

Select red mode (51)

Only the red channel is retained.

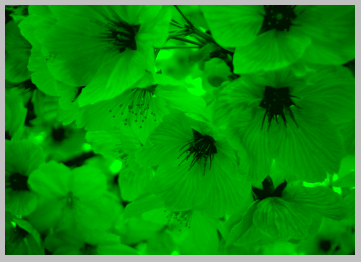

Select green mode (52)

Only the green channel is retained.


Select blue mode (53)

Only the blue channel is retained.

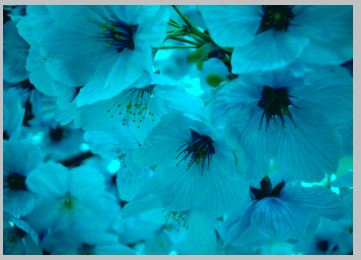

Discard red mode (54)

The red channel is discarded, the other two channels are retained.

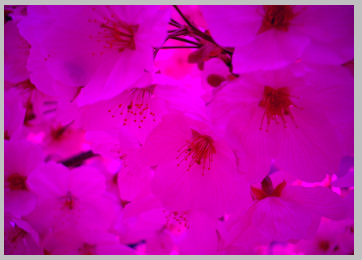

Discard green mode (55)

The green channel is discarded, the other two channels are retained.

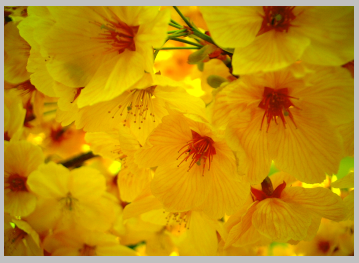

Discard blue mode (56)

The blue channel is discarded, the other two channels are retained.


Red to all channels mode (57)

The red channel is copied to all three channels, giving a grey-scale look, that is comprised of the red in the blend image.

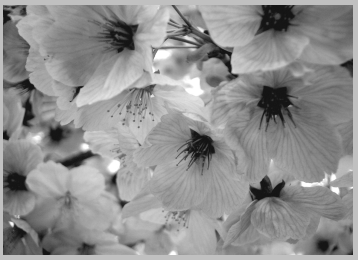

Green to all channels mode (58)

The green channel is copied to all three channels, giving a grey-scale look, that is comprised of the green in the blend image.

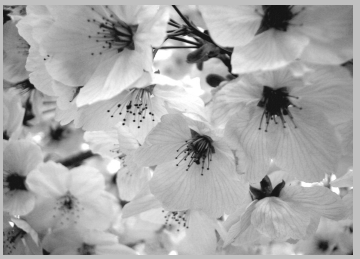

Blue to all channels mode (59)

The blue channel is copied to all three channels, giving a grey-scale look, that is comprised of the blue in the blend image.


Examples on this page

The examples on this page are taken from Fields of gold... by Spiralz, and Thanks to solea by jam343. These are licensed for royalty-free use under the Attribution 2.5 Generic License. They were obtained from the web site http://www.everystockphoto.com/.

Some ideas and descriptions were adapated from the Pegtop.net Blend Modes article.


Summary of the pages with the various mode groups:
